Customer Reference

LT-UTP-5EI-HOME-305

Category

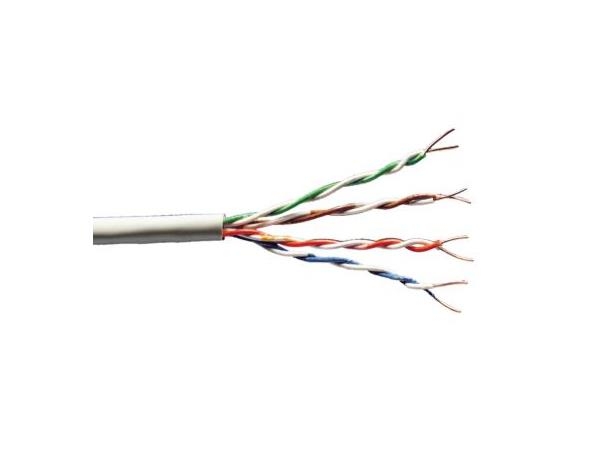

U/UTP CAT5E-4P-PVC

Reference Standard

ISO/IEC11801?TIA-568-C.2

Conductor

Material

Solid-Bare Copper

Nom.O.D.(mm)

0.490

up

+0.005

down

-0.005

Insulation

Material

HDPE

Diameter

0.87±0.05mm

Sheath

Thickness

0.50±0.05 mm

External O.D.

5.0±0.4 mm

Surface

Clean,Frap,Satiation

Material

PVC(complies RoHS)

Color

Multiple

Surface Printing

Letter height

3.0±0.3mm

Color

Black

Print error & Space

=±0.5%,1m

Core Color

1 White- Blue /Blue

2 White-Orange /Orange

3 White- Green /Green

4 White- Brown /Brown

Packing

Wooden Tray & Carton

Carton

dimension

According to the requires

Packing length

(305±1.5)m

Rip-cord

Yes

Drain wire

No

Sheath Physical

Properties

Before Aging  Tensile Strength (Mpa)  =13.5

               Elongation(%)        =150

Aging Period(?×hrs)     100?×24h×7d

After Aging  Tensile Strength(Mpa)     =12.5

           Elongation(%)             =125

Cold bend(-20±2?×4h)  8×Cable O.D.,No visible cracks

Electrical

Characteristics

 (20?)

1.0-100.0MHz  Impedance(O)               100±15

1.0-100.0MHz  Delay Skew (ns/100m)          =45

DC Resistance(O/100m) max                    9.5

DC Conductor Resistance Unbalance(%) max     5.0
