Customer Reference

LT-FTP-6I-305

Category

F/UTP  CAT6-4P-LSZH

Reference Standard

ISO/IEC11801?TIA-568-C.2

Conductor

Material

SOLID-Bare Copper

Nom.O.D.(mm)

0.565

up

+0.005

down

-0.005

Insulation

Material

HDPE

Diameter

1.12±0.05 mm

Screening Material

Mylar+ AL/Mylar

Sheath

Thickness

0.60±0.05mm

External O.D.

7.4±0.4mm

Surface

Clean,Frap,Satiation

Material

LSZH(complies RoHS)

Color

Multiple

Surface Printing

Letter height

3.0±0.3mm

Color

Black

Print error & Space

=±0.5%,1m

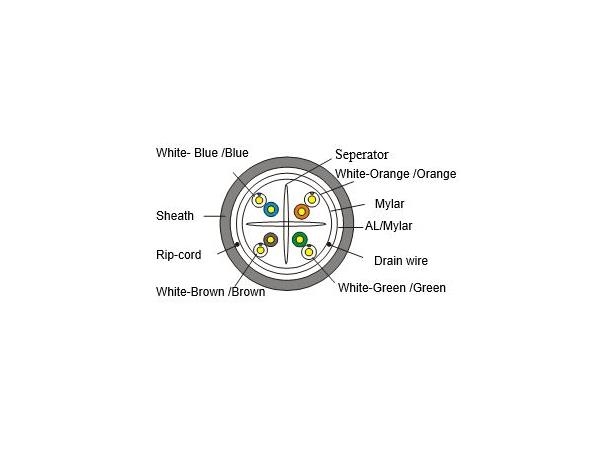

Core Color

1 White- Blue /Blue

2 White-Orange /Orange

3 White- Green /Green

4 White- Brown /Brown

Packing

Wooden Tray & Carton

Wooden Tray

dimension

According to the requires

Packing length

305±1.5m

Rip-cord

Yes

Drain wire

Yes

Sheath  Physical

Properties

Before Aging  Tensile Strength (Mpa)    =10.0

              Elongation(%)           =125

Aging Period (?×hrs)     100?×24h×7d

After Aging  Tensile Strength(Mpa)      =8.0

            Elongation(%)             =100

Cold bend(-20±2?×4h)  8×Cable O.D.,No visible cracks

Electrical

Characteristics

 (20?)

1.0-250.0MHz   Impedance (O)       100±15

1.0-250.0MHz  Delay Skew (ns/100m) =45

Unbalanced-to-ground capacitance (pf/100m) max   330

DC Resistance (O/100m) max               9.38

DC Conductor Resistance Unbalance (%)   max  5.0
