Customer Reference

LT-UTP-C6I-WH-305

Category

U/UTP CAT6-4P-LSZH

Reference Standard

ISO/IEC11801 TIA-568-C.2

Conductor

Material

SOLID-Bare Copper

Nom.O.D.(mm)

0.565

up

+0.005

down

-0.005

Insulation

Material

HDPE

Diameter

1.02±0.05mm

Sheath

Thickness

0.55±0.05 mm

External O.D.

6.2±0.4 mm

Surface

Clean,Frap,Satiation

Material

LSZH(complies RoHS) Dca s1,d2,a2

Color

Multiple

Surface Printing

Letter height

3.0±0.3mm

Color

Black

Print error & Space

=±0.5%,1m

Core Color

1 White- Blue /Blue

2 White-Orange /Orange

3 White-Green /Green

4 White- Brown /Brown

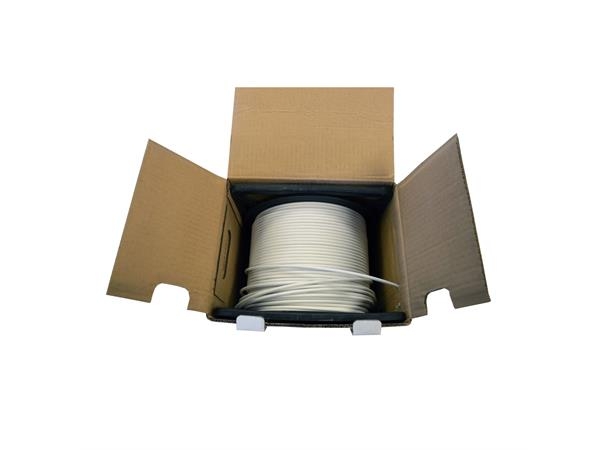

Packing

Wooden Tray & Carton

Carton dimension

According to the requires

Packing length

(305±1.5)m

Rip-cord

Yes

Drain wire

No

Sheath Physical

Properties

Before Aging  Tensile Strength (Mpa)    =10.0

               Elongation (%)          =125

Aging Period (?×hrs)     100?×24h×7d

After Aging  Tensile Strength (Mpa)     =8.0

             Elongation (%)           =100

Cold bend (-20±2?×4h) 8×Cable O.D.,No visible cracks

Electrical

Characteristics

 (20?)

1.0-250.0MHz  Impedance ((O)    100±15

1.0-250.0MHz  Delay Skew (ns/100m)     =45

DC Resistance (O/100m) max           9.38

DC Conductor Resistance Unbalance (%)  max     5.0
