Customer Reference

LT-UTP-C6I-UT-305

Category

U/UTP CAT6-4P-LSZH

Reference Standard

ISO/IEC11801?TIA-568-C.2

Conductor

Material

SOLID-Bare Copper

Nom.O.D.(mm)

0.520

up

+0.005

down

-0.005

Insulation

Material

HDPE

Diameter

0.93±0.05mm

Sheath

Thickness

0.55±0.05 mm

External O.D.

5.8±0.4mm

Surface

Clean,Frap,Satiation

Material

LSZH(complies RoHS)

Color

Multiple

Surface Printing

Letter height

3.0±0.3mm

Color

Black

Print error & Space

=±0.5%,1m

Core Color

1 White- Blue /Blue

2 White-Orange /Orange

3 White-Green /Green

4 White- Brown /Brown

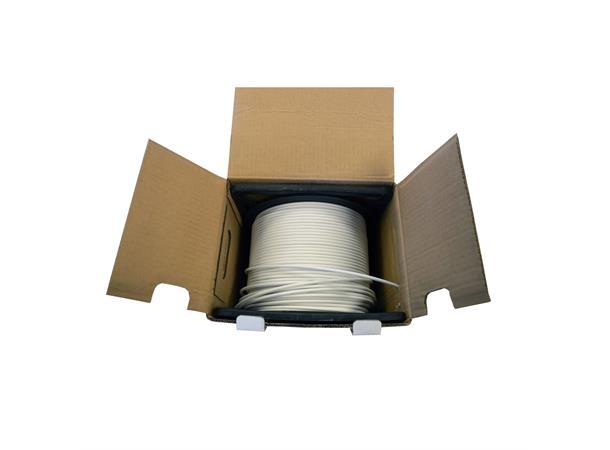

Packing

Wooden Tray & Carton

Carton dimension

Per request

Packing length

305±1.5m

Rip-cord

Yes

Drain wire

No

Sheath Physical

Properties

Before Aging  Tensile Strength (Mpa)     =10.0

        Elongation(%)                  =125

Aging Period (?×hrs)     100?×24h×7d

After Aging  Tensile Strength(Mpa)       =8.0

         Elongation(%)                 =100

Cold bend(-20±2?×4h)  8×Cable O.D.,No visible cracks

Electrical

Characteristics

 (20?)

1.0-250.0MHz  Impedance ((O)    100±15

1.0-250.0MHz  Delay Skew (ns/100m) =45

DC Resistance (O/100m) max      9.5

DC Conductor Resistance Unbalance (%)     max   5.0
