Customer Reference

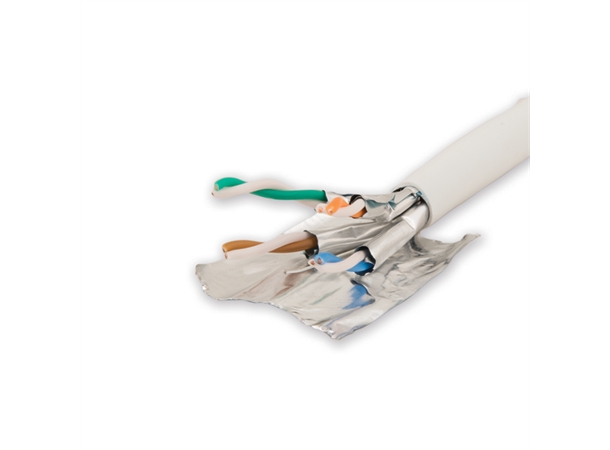

 LT-FFTP-C6AI-WH-305

Category

F/FTP-CAT6A-4P-LSZH

Reference Standard

ISO/IEC11801? TIA/-568-C.2

Conductor

Material

SOLID-Bare Copper

Nom.O.D.(mm)

0.560

up

+0.005

down

-0.005

Insulation

Material

Skin-foam-skin PE

Diameter

1.330±0.05 mm

Screening Material

Al/Mylar

Drain wire

Yes

Sheath

Thickness

0.55±0.05 mm

External O.D.

7.5±0.5 mm

Surface

Clean

Material

LSZH(complies RoHS)

Color

Multiple

Surface Printing

Letter height

3.0±0.3mm

Color

Black

Print error & Space

=±0.5%,1m

Core Color

(With striped color)

1 White/Blue

2 White/Orange

3 White/Green

4 White/Brown

Packing

Drum

Wooden Tray

dimension

According to the requires

Packing length

305±1.5m

Rip-cord

Yes

Sheath

Physical

Properties

Before Aging  Tensile Strength (Mpa)     =10.0

        Elongation(%)                  =125

Aging Period (?×hrs)     100?×24h×7d

After Aging  Tensile Strength(Mpa)       =8.0

         Elongation(%)                 =100

Cold bend(-20±2?×4h) 8×Cable O.D.,No visible cracks

Electrical

Characteristics

 (20?)

Impedance(O)   1.0-250.0MHz         100±15

                250.0-500.0MHz       100±22

1.0-500.0MHz  Delay Skew (ns/100m) =45

unbalanced-to-ground capacitance(pf/100m)max  330

DC Resistance (O/100m) max             9.38

DC Conductor Resistance Unbalance (%) max   5.0
